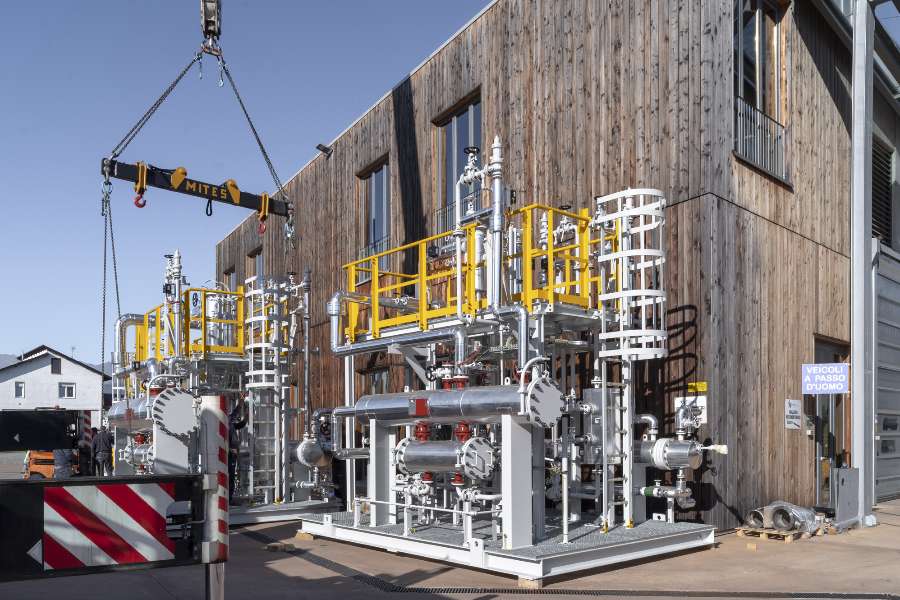

A Fuel Gas Preparation Package is a comprehensive system used in various industrial processes, particularly in the oil and gas industry, to ensure that the fuel gas supplied to turbines or other combustion equipment is of high quality, free from contaminants, and at the appropriate temperature. This package typically includes several components to achieve these objectives. Here are the key components and features of a Fuel Gas Preparation Package, as described:
Key Components and Features:
Fuel Gas Knockout Drum: The knockout drum is the initial stage of the system and is designed to remove any liquid droplets or condensates from the incoming fuel gas. This prevents liquid carryover into downstream components.
Basket Type Strainer: The basket strainer is responsible for the removal of solid particulate matter, such as dirt, debris, and larger particles, from the fuel gas. This protects downstream equipment from fouling and damage.
Horizontal Coalescer (Cartridge Type): The coalescer is used to remove smaller liquid droplets from the gas stream. It employs coalescing filter cartridges that capture and merge fine liquid particles, allowing them to be separated from the gas phase.
Fuel Gas Heater: The fuel gas heater is used to control the temperature of the gas, ensuring that it is within the specified range for efficient combustion. It can be essential in cold weather conditions or for maintaining gas viscosity.
K.O. Drum, Strainer, and Coalescer Internals: These components include the internal components of the knockout drum, strainer, and coalescer. They are designed to enhance the separation and filtration processes.
Coalescer Horizontal Sump: The coalescer sump collects the separated liquid from the coalescing process. It provides a means for draining and disposing of the separated liquid efficiently.
Steel Baseplate: The entire package is often mounted on a steel baseplate, providing structural support and facilitating installation.
Removal Efficiency: The specified removal efficiency of 99.98% for particles 0.3 microns in diameter and larger indicates the high-quality filtration and separation capability of the system, ensuring that the fuel gas is exceptionally clean.
Importance:
A Fuel Gas Preparation Package is crucial for several reasons:
Efficient Combustion: It ensures that the fuel gas supplied to combustion equipment is free from impurities and at the correct temperature, which promotes efficient and clean combustion.
Equipment Protection: By removing liquid droplets and particles, it protects downstream equipment, including gas turbines and engines, from damage and fouling.
Environmental Compliance: It helps meet environmental regulations by ensuring that emissions are within acceptable limits, particularly for particulate matter and liquid carryover.
Operational Reliability: The package enhances the reliability of gas turbines, reducing the risk of performance issues and downtime.
Safety: By removing liquid and contaminants, it contributes to the safety of operations and personnel.
In summary, a Fuel Gas Preparation Package is a vital system that prepares fuel gas for combustion by removing impurities, liquid droplets, and controlling temperature. It plays a crucial role in ensuring efficient, reliable, and environmentally compliant operation of combustion equipment in industrial processes.
